GPS Wiring
I just got a Zumo 450 and would like to have it wired under the fairing on my 08 FLHTC.
Right now I have it to the lighter. I would like to have it powered on all the time.
Is there a hot lead or plug under the fairing?
Right now I have it to the lighter. I would like to have it powered on all the time.
Is there a hot lead or plug under the fairing?
Last edited by kennyross; 09-28-2008 at 10:52 AM. Reason: Year
#2
#3
#4
Remove the fairing switch cap (where the switches are located) by first pulling the switch **** and removing the two side screws. Wire it to the ACC switch as per this diagram:
Wiring diagram
If you want it wired to the switched side of the ACC switch, i.e. switched by the ignition and the ACC switch, use the orange wire instead-- although I can't imagine why you'd want to do it this way. I hard-wired my Zumo 450, which I just got last week, in the same way I had my Quest wired before it.
As for wiring directly to the battery, there is no reason that I know of not to do it this way since when powered off it shouldn't be any drain to the battery, although there's no info on this in the Zumo specs. Some electronic devices do pull some current while powered off, and this isn't something you want happening. What is a big downside to wiring direct like this is that the Zumo will not power down automatically like it does when the 12V source quits, as what happens with a switched source. Therefore you must power it off each time manually and if you forget it will drain the battery. OTOH I see no upside to this at all. When connected to an ignition-switched source and you want to use the GPS while the engine is off, just switch to "Access" (far right) position on the ignition switch.
If you want to connect it to a wire under the fairing, the lighter is as good as any and is close to where you'll likely mount the GPS.
Last edited by iclick; 09-28-2008 at 12:17 PM.
#5
#6
Wired mine to a cig. lighter adapter and now it is powered when the ignition switch is On or ACC.
I am still haveing problems with my power going through the mount of I have an issue with my Zumo (just installed it). Working with Garmin on the issue - - maybe you can help.
My messaage to Garmin:
I have my Zumo 450 powered via my FLHT cigarette lighter circuit. When I try to play MP3 songs - I get the error message - The zumo must be in a powered mount or be connected to a Bluetooth headset to hear audio. It appears that the zumo is not seeing the external power. I verified that there is DC power to the motor cycle Zumo mount. Any suggestions? I could check the pins on the mount for DC power - not sure which pins on the bottom of the mount would be checked for DC power.
Reply from Garmin:
To verify the unit is getting power is as easy as just placing the unit into the mount power off. This unit should power on immediately without you having to power on the unit yourself. Can you test this? Does anyone else you know have a Zumo also? Perhaps you could test this on their mount?
Reply to Garmin:
I placed my Zumo 450 in the motorcycle mount and it does not power on. I checked for power at the mount pins with the Zumo 450 removed and there is power at pin 3 on the front row of pins (third from the left when you face the mount).
Question to the "group":
Does your 450 or 550 power up when it is placed in the mount - with power applied?
I am still haveing problems with my power going through the mount of I have an issue with my Zumo (just installed it). Working with Garmin on the issue - - maybe you can help.
My messaage to Garmin:
I have my Zumo 450 powered via my FLHT cigarette lighter circuit. When I try to play MP3 songs - I get the error message - The zumo must be in a powered mount or be connected to a Bluetooth headset to hear audio. It appears that the zumo is not seeing the external power. I verified that there is DC power to the motor cycle Zumo mount. Any suggestions? I could check the pins on the mount for DC power - not sure which pins on the bottom of the mount would be checked for DC power.
Reply from Garmin:
To verify the unit is getting power is as easy as just placing the unit into the mount power off. This unit should power on immediately without you having to power on the unit yourself. Can you test this? Does anyone else you know have a Zumo also? Perhaps you could test this on their mount?
Reply to Garmin:
I placed my Zumo 450 in the motorcycle mount and it does not power on. I checked for power at the mount pins with the Zumo 450 removed and there is power at pin 3 on the front row of pins (third from the left when you face the mount).
Question to the "group":
Does your 450 or 550 power up when it is placed in the mount - with power applied?
#7
Trending Topics
#8
Jmjohn

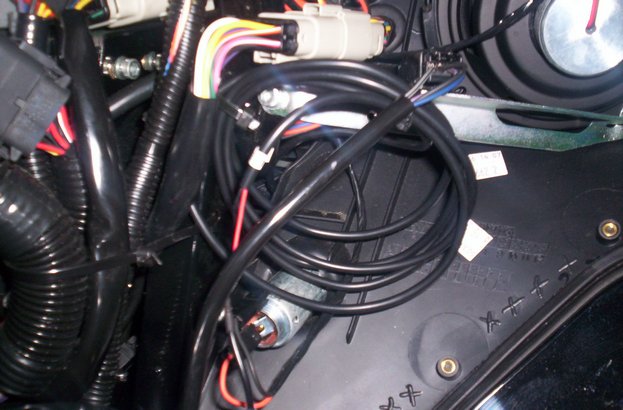

tie the Garmin 450 to the back of the cigarette lighter plug in the back of the fairing ,,,,,
